Shipbuilding industry facilities

In "the KIMURA group ," I manufacture "a large-scale press machine, the vendor" which I applied the technique to. The development of the shipbuilding industry facilities including a large-scale press machine, the conveyer vendor give the KIMURA group an order.

Large-scale press machine (bending of the iron plate)

From the bending of the iron plate to distortion collecting, I perform a lineup of various functions.

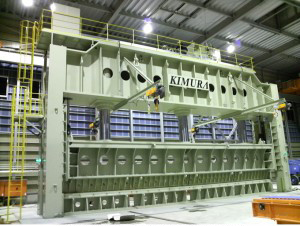

  • 2000TON folding press (NC control)

    2000TON folding press (NC control)

  • KSBOP-500M　(500TON)

    KSBOP-500M　(500TON)

  • KSOP-800　(800TON)

    KSOP-800　(800TON)

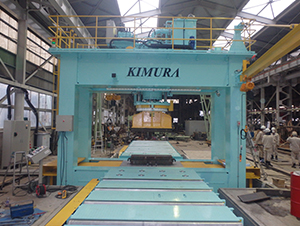

  • KSOP-1000　(1000TON)

    KSOP-1000　(1000TON)

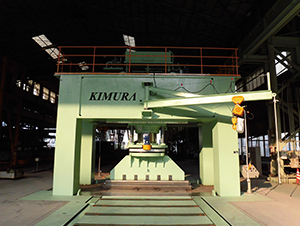

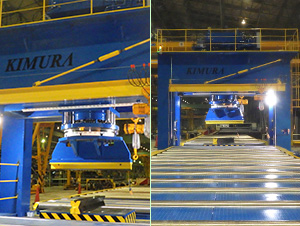

  • 1000TON lamb bolster rotary movement press (NC control)

    1000TON lamb bolster rotary movement press (NC control)

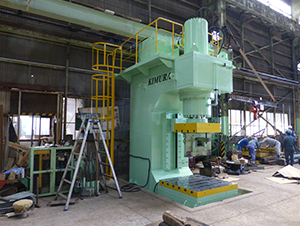

  • C type press machine

    C type press machine

Ability

※表は左右にスクロールして確認することができます。

Model KSPOP-1000 KSBOP-500M KSOP-400
The output 1000t 500t 400t
D light 1800㎜ 900㎜ 800㎜
Gate width 5200×3000 1500×4200 1500×3500
Power 55kw 45kw 3７kw
NC control Lamb bolster movement, turning type 1000TON press Lamb bolster movement, turning type 500TON press Lamb bolster movement, turning type 400TON press
An incidental apparatus and attendant equipments

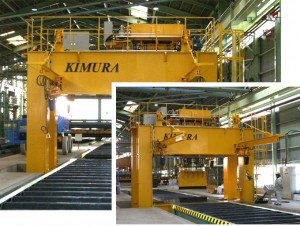

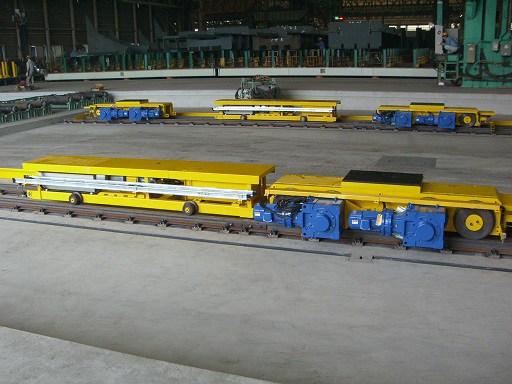

  • Ability for block conveyance chassis, going up and down, conveyance 100t/ (the shipbuilding industry)

    Ability for block conveyance chassis, going up and down, conveyance 100t/ (the shipbuilding industry)

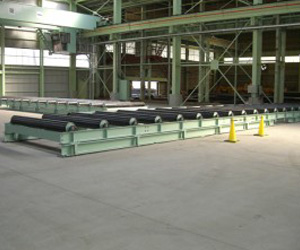

  • Materials conveyance roller

    Materials conveyance roller

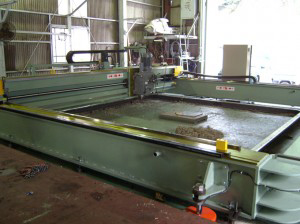

  • Hatch cutting machine (the shipbuilding industry)

    Hatch cutting machine (the shipbuilding industry)

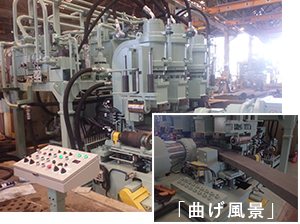

Angle vendor

By NC control, stable bending is possible.

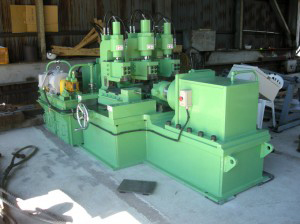

  • 300TON angle vendor

    300TON angle vendor

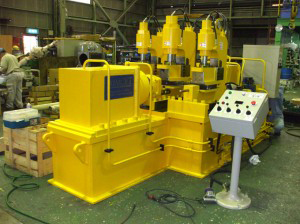

  • 400TON angle vendor

    400TON angle vendor

  • 600TON angle vendor

    600TON angle vendor

  • Angle vendor (特)

    Angle vendor (特)

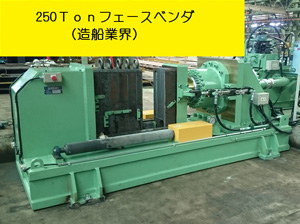

  • 250TON face Benda (the shipbuilding industry)

    250TON face Benda (the shipbuilding industry)

Ability

※表は左右にスクロールして確認することができます。

Model KAB250 KAB300 KAB400 KAB600
The output (TON) 100 150 200 350
Maximum bending R (radius) 3000 4000 5000
The biggest bending angle 12×90×250 13×90×300 13×90×400 13×100×600
Motor 11kW 18.5kW 30kW
In particular order: Materials, a roller for conveyance, a music type for rolling steel and jig

This plane is set to bend a valve plate and angle brace at will, but, by jig exchange, bending can do the product except it.
