High-speed notching machine
I introduce the line of products up of the industrial equipment facilities which "KIMURA group" is proud of. The superior product of the KIMURA brand makes it a person-saving up to conveyance, inspection not to mention processing molding in various industries and contributes to productivity improvement. In addition, please talk about the product which you do not introduce here willingly if there is a demand.

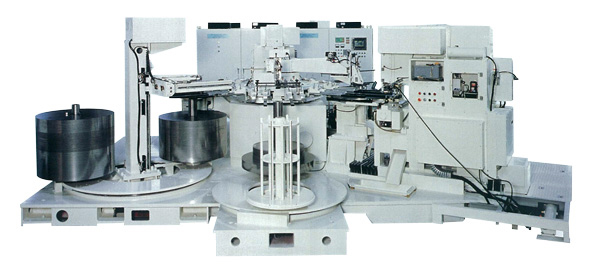

High-speed notching machine
The electromagnetic steel sheet which is used for the laminated steel sheets such as a motor, the generator. In notching machine which was indispensable to the press working of the core stator core and rotor core, KIMURA stimulated innovation. High speed notching machine which concentrated The best of the electronics, all automatic notching machine are proud of high efficiency, high precision and greatly contribute to productivity improvement
Ability
High-speed notching machine
※表は左右にスクロールして確認することができます。
| Model | HND(6t) | HNF(6t) | HND(10t) | HNF(10t) | HND(16t) | HNF(16t) |
|---|---|---|---|---|---|---|
| Avility | 6t | 10t | 16t | |||
| Output point | 1.5mm | 1.5mm | 2mm | |||
| Slide stroke number | 200～900spm | 200～1200spm | 200～800spm | 200～1100spm | 200～800spm | |
| Slide stroke head | 16mm | 20mm | 20㎜ | |||
| Slide adiustment quantity | 20mm | 25mm | 30mm | |||
| Die height | 200mm | 230mm | 250mm | |||
| Index range | 4～120 | (10)30～120 | 4～200 | (10)30～180 | 4～200 | (10)30～180 |
| Slide area (L×R) | 140×100mm | 160×105mm | 210×130mm | |||
| Bolster area (L×R) | 360×220mm | 400×240mm | 400×250mm | |||
| Junk hole diameter | Φ32×60mm | |||||
| Maxmum blank diameter | 400mm/500mm | 600mm/900mm/1200mm | 900mm/1200mm | |||
| Smallest blank diameter | 100mm | 270mm | 290mm | |||
| Frame gap | 200mm | 250mm | 300mm | |||
| Main motor | 5kW | 11kW | 15kW | 15kW | 22kW | |
| Work holder | Fixation | Fixation, standard pin | ||||
| Work Clamper | The pivot | |||||
High-speed notching machine
※表は左右にスクロールして確認することができます。
| Model | HND-6-LA HND-6-2LA HND-6-RA HND-6-2RA |
HNF-6-LA HNF-6-2LA HNF-6-RA HNF-6-2RA |
HND-10-LA HND-10-2LA HND-10-RA HND-10-2RA |
HNF-10-LA HNF-10-2LA HNF-10-RA HNF-10-2RA |
HND-16-LA HND-16-2LA HND-16-RA HND-16-2RA |
HNF-16-LA HNF-16-2LA HNF-16-RA HNF-16-2RA |
||
|---|---|---|---|---|---|---|---|---|
| Avility | 6t | 10t | 16t | |||||
| Output point | 1.5mm | 1.5mm | 2.0mm | |||||
| Slide stroke number | 200～900spm | 200～1200spm | 200～800spm | 200～1100spm | 200～800spm | |||
| Slide stroke head | 16mm | 20mm | 20㎜ | |||||
| Slide adiustment quantity | 20mm | 25mm | 30mm | |||||
| Die height | 200mm | 230mm | 250mm | |||||
| Index range | 4～120 | (10)30～120 | 4～200 | (10)30～180 | 4～200 | (10)30～180 | ||
| Slide area (L×R) | 140×100mm | 160×105mm | 210×130mm | |||||
| Bolster area (L×R) | 360×220mm | 400×240mm | 400×250mm | |||||
| Maxmum blank diameter | 400mm/500mm | 600mm/900mm/1200mm | 900mm/1200mm | |||||
| Smallest blank diameter | 150mm | 290mm | 300mm | |||||
| Frame gap | 200mm | 250mm | 300mm | |||||
| Main motor | 5kW | 11kW | 15kW | 15kW | 22kW | |||
| Transport system number | 3～4 | 4～5 | ||||||
| Number of the blanks takka device and products takka device stations | 2～4 | |||||||
| Work holder | Fixation | Fixation, standard pin | ||||||
自動高速ノッチングマシン直線式搬送装置レイアウト
 |

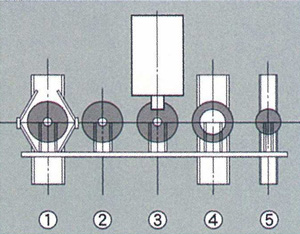

HND-(6,10,16)-LA/HNF-(6,10,16)-LA ①Blank supply station (floater, pickup) 1-4 stocker②Orientation station ③Notching machine (status lot / Lotus Development Corporation lot processing) ④Status takka station 1-4 stocker ⑤Rotor blank stack takka station 1-4 stocker |
|---|---|
 |

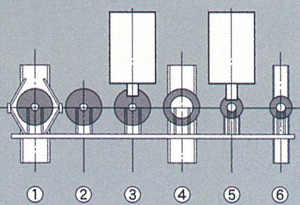

HND-(6,10,16)-2LA/HNF-(6,10,16)-2LA ①Blank supply station (floater, pickup) 1-4 stocker②Orientation station ③Notching machine (status lot / Lotus Development Corporation lot processing) ④Status takka station 1-4 stocker ⑤Rotor blank stack takka station 1-4 stocker |
High-speed notching machine layout
 |

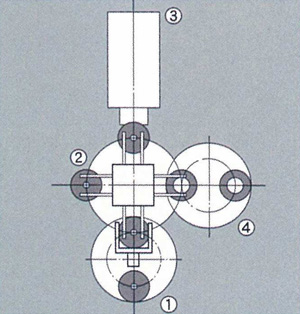

HND-(6,10,16)-RA-4/HNF-(6,10,16)-RA-4 ①Blank supply station (floater, pickup) 1-4 stocker②Orientation station ③Notching machine (status lot / Lotus Development Corporation lot processing) ④Status takka station 1-4 stocker |
|---|---|
 |

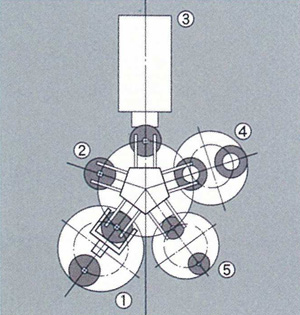

HND-(6,10,16)-RA-5/HNF-(6,10,16)-RA-5 ①Blank supply station (floater, pickup) 1-4 stocker②Orientation station ③Notching machine (status lot / Lotus Development Corporation lot processing) ④Status takka station 1-4 stocker ⑤Rotor blank stack takka station 1-4 stocker |
 |

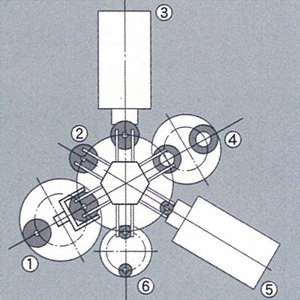

HND-(6,10,16)-2-RA-6/HNF-(6,10,16)-2-RA-6 ①ブランク供給ステーション(フロータ、ピックアップ) 1～4スタッカ ②オリエンテ--ションステーション ③第1ノッチングマシン(ステータスロット加工) ④ステータスタッカステーション 1～4スタッカ ⑤第2ノッチングマシン(ロータスロット加工) ⑥ロータスタッカステーション 1～4スタッカ |
