Plastic bottle shrikage packing machine
In "the KIMURA group ," I manufacture "plastic bottle shrinkage packing machine" where I applied the technique to. These environmental machines compress the plastic bottle which I collected effectively and pack it and contribute to resources recycling.
-

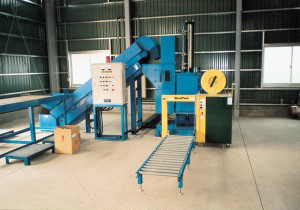

Plastic bottle shrinkage packing machine
-

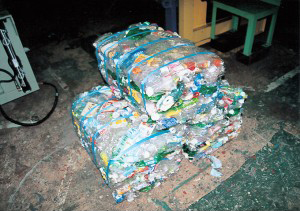

Plastic bottle compression molded article
Ability
※表は左右にスクロールして確認することができます。
| Model | KPBP-100V | KPBP-200V | KPBP-300V | KPBP-400V |
|---|---|---|---|---|
| Compression power | 363kN | 363kN | 412kN | 414kN |
| Power | 3.7kW | 7.5kW | 11kW | 22kW |
| Molding dimensions | 400W×600L×300H | |||
| Processing capacity | 100kg/h | 200kg/h | 300kg/h | 500kg/h |
| Equipment weight | 2.0t | 2.2t | 4.0t | 4.5t |
Attendant equipments
- Injection Hopper (1,000mm diameter)
- PP band(one)
- Injection conveyer
- Hydraulic fluid (150 - 300ℓ)
- Discharge conveyer
- Control panel (one)
- All automatic packing machine
- Device to make a hole in
Good point
As for the plastic bottle shrinkage paching machine KPBP series of the KIMURA group, all automatic driving is possible from conveyer transport to packing discharge. Furthermore, it is shipped with a drill posture. I adopt an energy saving pump and can reduce use electricity. The special design that I accept the specifications of the visitor is possible.
Abolished plastic shrinkage packing machine
In "the KIMURA group ," I manufacture "abolished plastic shrinkage packing machine" where I applied the technique to. These environmental machines compress the abolished plastic which I collected effectively and pack it and contribute to resources recycling.
The KSTP series compresses the abolished plastic which I collected efficiently and does shrinkage and packs it to the size that it is easy to convey.
-

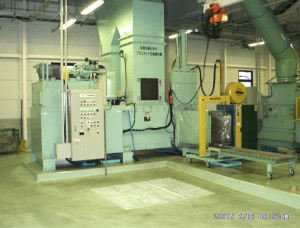

Abolished plastic shrinkage
-

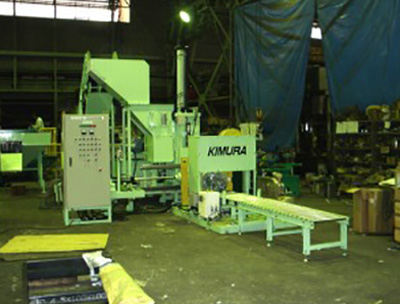

The KSTP series
Ability
※表は左右にスクロールして確認することができます。
| Model | KSTP-1000H | KSTP-2000H | KSTP-3000H | KSTP-100 V | KSTP-200 V | KSTP-300 V |
|---|---|---|---|---|---|---|
| Compression power | 663kN | 867kN | 257kN | 421kN | ||
| Power | 15kW×4P | 22kW×4P | 30kW×4P | 3.7kW×4P | 7.5kW×4P | 11kW×4P |
| Molding dimensions | 600W×600L×600H | 900W×900L×900H | 400W×600L×300H | |||
| Processing capacity | 1t/h | 2t/h | 3t/h | 100kg/h | 200kg/h | 300kg/h |
| Equipment weight | 8.0t | 10.0t | 14.0t | 2.0t | 2.5t | 4.0t |
Good point
The abolished shrinkage packing machine KPBP series of the KIMURA group of plastic can choose 4-6 packing specifications, bag credit specifications depending on a use.
Attendant equipments
-
I can produce baletype, too
※表は左右にスクロールして確認することができます。
| KSTP-1000H/KSTP-2000H/KSTP-3000H | KSTP-100 V/KSTP-200 V/KSTP-300 V |
|---|---|
|
|
Good point
The abolished shrinkage packing machine KPBP series of the KIMURA group of plastic can choose 4-6 packing specifications, bag credit specifications depending on a use. I adopt an energy saving pump and reduce consumption electricity. A design, production that I add it and throughput are possible
