Empty can press and three kinds of sorting line
In "the KIMURA group ," I develop an empty can press machine, a KCP type (on the other hand, I close it and type it), a KCP-A type (two ways total type) that I applied the technique to. Furthermore, the making of a three kinds sorter sorting canned canned steel, aluminum, a bottle, residual substance by the combination with other machines automatically is possible. I perform the production of the recycling line which I matched with a visitor by the combination of conveyers. An environmental machine, the development of recycling facilities give the KIMURA group an order.
One way press machine KCP type
An empty can press machine of the space-saving type that the KCP type has a small fixed area and does not take the place. The attachment such as Hopper that I match it with a factory layout is possible.
-

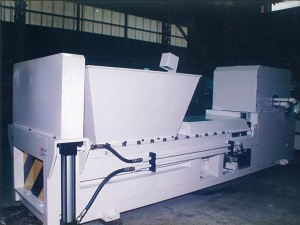

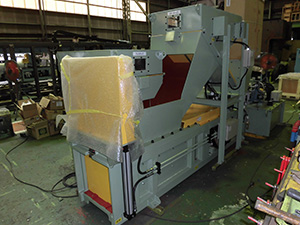

Empty can press machine
-

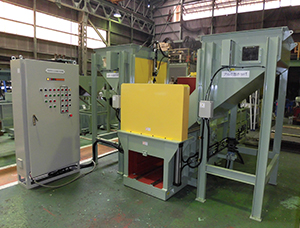

Empty can press machine with Hopper
Ability
※表は左右にスクロールして確認することができます。
| Model | KCP-350 | KCP-400 | KCP-500 |
|---|---|---|---|
| Compression power | 15.9t | 24.9t | 51.7t |
| Power | 5.5kW×4P | 7.5kW×4P | 11kW×4P |
| Molding dimensions | 350W×freeL×350H | 400W×freeL×400H | 500W×freeL×500H |
| Processing capacity | 0.3t/h | 0.5t/h | 1.0t/h |
| External form dimensions | 650W×2195L×1180H | 700W×2525L×1214H | 860W×3300L×1500H |
| Equipment weight | 1.2t | 1.5t | 2.5t |
Two way press machine KCP-A type
It is a two way press machine with a lid showing power for empty can compression. The special design with the knife, the production are possible depending on a use use, too.
-

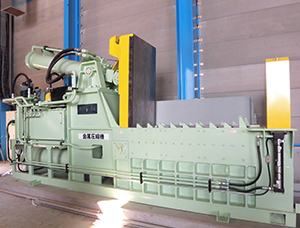

KCP-600A
-

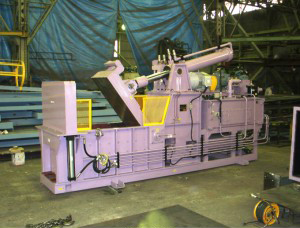

Canned canned KCP-600A steel, aluminum is working under Hopper
-
Blade specter
Ability
※表は左右にスクロールして確認することができます。
| Model | KCP-500A | KCP-600A | KCP-650A |
|---|---|---|---|
| Compression power | 31.2t | 57.6t | 63.8t |
| Power | 7.5kW×4P | 11kW×4P | 15kW×4P |
| Molding dimensions | 500W×freeL×300H | 600W×freeL×400H | 600W×freeL×450H |
| Processing capacity | 1.1t/h | 1.5t/h | 1.9t/h |
| External form dimensions | 850W×3200L×1750H | 1070W×4100L×2169H | 1100W×4300L×2554H |
| Equipment weight | 2.5t | 6t | 7t |
※表は左右にスクロールして確認することができます。
| Model | KCP-700A | KCP-800A | KCP-900A |
|---|---|---|---|
| Compression power | 80.0t | 99.7t | 129.6t |
| Power | 22kW×4P | 30kW×4P | 37kW×4P |
| Molding dimensions | 700W×freeL×500H | 800W×freeL×600H | 900W×freeL×700H |
| Processing capacity | 2.5t/h | 3.2t/h | 3.8t/h |
| External form dimensions | 1280W×4650L×2874H | 1360W×5000L×2876H | 1460W×5400L×3025H |
| Equipment weight | 8t | 10t | 11t |
KCP series good point
Space-saving design |
A fixed area does not take the place small. |
|---|---|
Simple operation |
I can choose automatic driving, hand-operated driving with one control panel freely. |
A no trouble |
Even 24-hour consecutive driving is trouble-free. I promise safe operation. |
The distinguished durability |
It is solid structure to be able to tolerate the operation more than machine repayment periods enough. |
Safe control |
The electric control secures safety by a compact sequence program. |
Energy saving performance |
I adopt an energy saving pump and can reduce use electricity. |
Becoming it is easy a line |
I can perform the cooperation such as Magnetic force sorter, an aluminum sorter, the conveyer easily. |
Abundant product line |
A lineup available to a use. I take the order of the special model. |
Empty can recycling line
The design of the residual sorting line, the production are possible canned canned steel, aluminum, a bottle, too.
In addition, I can fit the wide recycling line by the combination with other apparatuses.
-

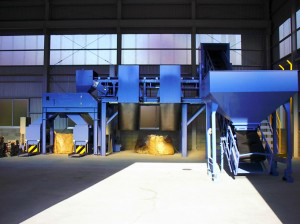

Three kinds of sorters
-
Small line
-

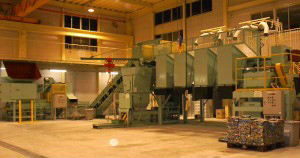

Large-scale line
Good point
By the abundant production results of the recycling line, the design of the plant to the recycling situation of the visitor is possible. Because the production depending on throughput, space, a budget is possible, please talk with KIMURA when you have a problem with the plan of the recycling line.
