Twin crusher / Kimura cutting machine
In "the KIMURA group ," production sells "running out of Kimura cutting threads of a weaving machine" (scrap press with the KPS400 cutting machine) to show power to various construction scrap wood and abolished tire, "twin crusher" corresponding to widespread waste including the abolished plastic and compression, shrinkage of the scrap. It is the anchor product of our group dealing with plastic bottle shrinkage packing machine, abolished plastic shrinkage packing machine and laying upon, an environmental facilities machine.

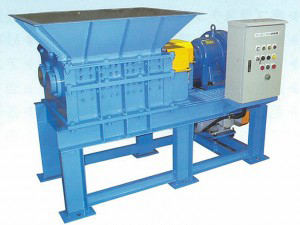

Twin crusher
The biaxial crusher KSS-320 series of KIMURA contributing to disposal, recycling of a great variety of waste including construction scrap wood and an abolished tree, an abolished tire, abolished plastic. By high processing capacity, a static sound design, it is inflected in various fields.
-

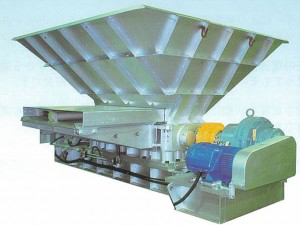

Twin crusher
-

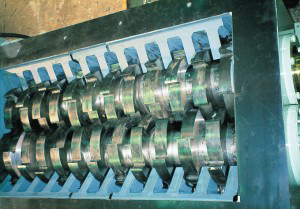

Twin crusher, knife part
-
Twin crusher
-

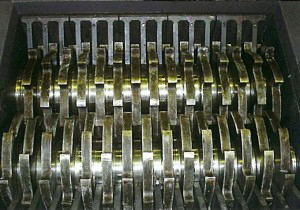

Twin crusher, knife part
Ability
※表は左右にスクロールして確認することができます。
| Model | Motor, number | Slit dimensions mm | Cutter diameter, thickness mm | Main body weight |
|---|---|---|---|---|
| KSS-320-15.0/24 | 15.0kW×2 | 630×1240 | Φ320・50 | 6.9t |
| KSS-320-15.0/30 | 15.0kW×2 | 630×1540 | 7.2t | |
| KSS-320-15.0S/24 | SIM15.0kW×2 | 630×1240 | 6.9t | |
| KSS-320-15.0S/30 | SIM15.0kW×2 | 630×1540 | 7.2t | |
| KSS-320-18.5/24 | 18.5kW×2 | 630×1240 | 6.9t | |
| KSS-320-18.5/30 | 18.5kW×２ | 630×1540 | 7.2t | |
| KSS-320-18.5S/24 | SIM18.5kW×2 | 630×1240 | 6.9t | |
| KSS-320-18.5S/30 | SIM18.5kW×2 | 630×1540 | 7.2t | |
| KSS-320-1/2-15.0/30 | 15.0kW | 620×780 | Φ320・25 | 約3.0t |
※I may change the specifications without a notice for improvement.
Good point
Because the biaxial crusher KSS-320 series of KIMURA is superior in stability of the start torque, there are few vibration and noise; become environment-conscious. A design, production that I match it with the situation of the plant are possible.
Additional equipment
-

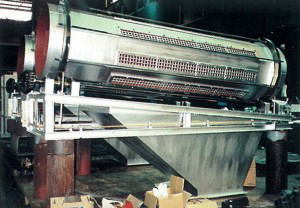

Trommel
-

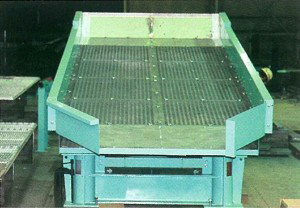

Screen
A processing object and processing inappropriate thing
※表は左右にスクロールして確認することができます。
| Processing object | Processing inappropriate thing |
|---|---|
Others |
Others |
Crush example
- It is before injection
- After injection
- Abolished tire
-
-
- Abolished wood
-
-
- Body bumper
-
-
Kimura cutting machine
"Cutting threads of a weaving machine (scrap press with the KGPS400 cutting machine) to digest compression and the cutting of the metal scrap in one running out of Kimura" raises work efficiency of the metal recycling by superior processing capacity markedly.
-

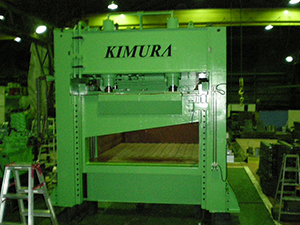

Kimura cutting machine
Ability
※表は左右にスクロールして確認することができます。
| KDS-100 | KDS-200 | KDS-300 | KDS-600 | KDS-800 | KDS-1000 | KDS-1250 | |
|---|---|---|---|---|---|---|---|
| Cutting cylinder power | 100TON | 200TON | 300TON | 600TON | 800TON | 1000TON | 1250TON |
| Weight cylinder power | 40TON | 80TON | 125TON | 200TON | 300TON | 400TON | 500TON |
| Blade width | 1000㎜ | 1500㎜ | 2000㎜ | ||||
| Pressure | 24.5MPa | ||||||
| Motor | 30kw | 37kw | 37kw | 37kw×one | 45kw×three | 55kw×three | 75kw×three |
| Materials injection case | W 1000 L 3000 D 800 |
W 1500 L 4000 D 900 |
W 1500 L 5000 D 1000 |
W 2000 L 6500 D 1100 |
W 2000 L 7500 D 1300 |
W 2000 L 10000 D 1500 |
|
| Operation method | Automatic or manual operation | ||||||
Cutting machine + press
-

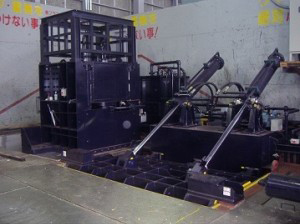

Scrap press with the KGPS-400 cutting machine
-
-

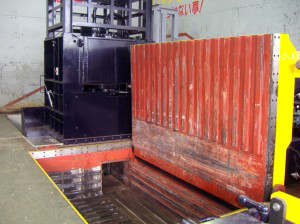

At the time of a lid opening
-

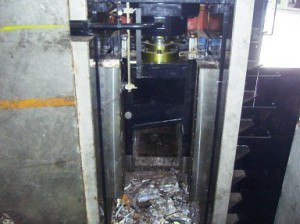

Cutting machine part
-
Flow of the recycling
-
①Scrap injection
-
②Scrap compression, molding
-
③Scrap cutting
Good point
| The high durability and toughness | Tough structure and one with a tough blade which endure the consecutive operation. |
|---|---|
Distinguished low cost |
The part of one of the cutting machine and the scrap press machines 2. Inexpensiveness of the introduction cost is attractive. |
Space-saving |
A fixed area does not take the place small. |
I cut it to arbitrary size |
I cut the product which I press it and molded to any size. Flexible taking care of is possible. |
Energy saving |
I adopt an energy saving pump and can reduce use electrici |
